Modulo 70 cm
FUN 700
F70/70FTG/LR/A
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed mild steel plate, on open cabinet
Fry top gas FUN 70/70 piastra 2/3 liscia 1/3 rigata 11,4 kW vano aperto
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 73
- Net volume (m3) 0,417
- Gross weight (kg) 86
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/L/T
FUN 700
Gas griddle, smooth mild steel plate, top
Fry top gas FUN 70/70 piastra liscia 11.4 kW top
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
- Plate finish Smooth
Constructive Data
- Net weight (kg) 56
- Net volume (m3) 0,147
- Gross weight (kg) 69
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/L/A
FUN 700
Gas griddle, smooth mild steel plate, on open cabinet
Fry top gas FUN 70/70 piastra liscia 11.4 kW vano aperto
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
- Plate finish Smooth
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 68
- Net volume (m3) 0,417
- Gross weight (kg) 81
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/CL/T
FUN 700
Gas griddle, smooth polished chromed plate, top
Fry top gas FUN 70/70 piastra cromo lucido liscia 11.4 kW top
Features
- Plate Polished chromed plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Polished chrome
- Plate finish Smooth
Constructive Data
- Net weight (kg) 71
- Net volume (m3) 0,147
- Gross weight (kg) 84
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/CL/A
FUN 700
Gas griddle, smooth polished chromed plate, on open cabinet
Fry top gas FUN 70/70 piastra cromo lucido liscia 11.4 kW vano aperto
Features
- Plate Polished chromed plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Polished chrome
- Plate finish Smooth
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 83
- Net volume (m3) 0,417
- Gross weight (kg) 96
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/LR/T
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed mild steel plate, top
Fry top gas FUN 70/70 piastra 2/3 liscia 1/3 rigata 11,4 kW top
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
Constructive Data
- Net weight (kg) 61
- Net volume (m3) 0,147
- Gross weight (kg) 74
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/CLR/T
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed polished chromed plate, top
Fry top gas FUN 70/70 piastra cromo lucido 2/3 liscia 1/3 rigata 11,4 kW top
Features
- Plate Polished chromed plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Polished chrome
Constructive Data
- Net weight (kg) 68
- Net volume (m3) 0,147
- Gross weight (kg) 81
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/CLR/A
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed polished chromed plate, on open cabinet
Fry top gas FUN 70/70 piastra cromo lucido 2/3 liscia 1/3 rigata 11,4 kW vano aperto
Features
- Plate Polished chromed plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Polished chrome
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 80
- Net volume (m3) 0,417
- Gross weight (kg) 93
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/L/P
FUN 700
Gas griddle, smooth mild steel plate, on cabinet with doors
Fry top gas FUN 70/70 piastra liscia 11.4 kW vano con porte
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
- Plate finish Smooth
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 74
- Net volume (m3) 0,417
- Gross weight (kg) 87
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/CL/P
FUN 700
Gas griddle, smooth polished chromed plate, on cabinet with doors
Fry top gas FUN 70/70 piastra cromo lucido liscia 11.4 kW vano con porte
Features
- Plate Polished chromed plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Polished chrome
- Plate finish Smooth
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 89
- Net volume (m3) 0,417
- Gross weight (kg) 102
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/LR/P
FUN 700

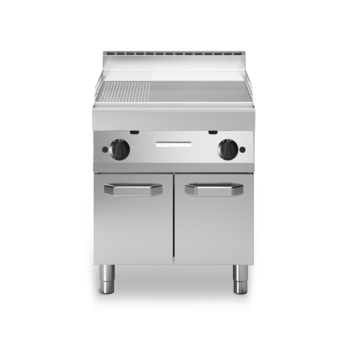

Gas griddle, 2/3 smooth 1/3 ribbed mild steel plate, on cabinet with doors
Fry top gas FUN 70/70 piastra 2/3 liscia 1/3 rigata 11,4 kW vano con porte
Features
- Plate In mild steel
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Mild steel
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 79
- Net volume (m3) 0,417
- Gross weight (kg) 92
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/CLR/P
FUN 700
Gas griddle, smooth satin chrome plate, top
Fry top gas FUN 70/70 piastra cromo lucido 2/3 liscia 1/3 rigata 11,4 kW vano con porte
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
- Plate finish Smooth
- Inner corners 90° spokes. Optional H2 spoking
Constructive Data
- Net weight (kg) 86
- Net volume (m3) 0,417
- Gross weight (kg) 99
- Gross volume (m3) 0,711
- Total gas power (kW) 5,7
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/SL/T
FUN 700
Gas griddle, smooth satin chrome plate, top
Fry top gas FUN 70/70 piastra cromo satinato liscia 11.4 kW top
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
- Plate finish Smooth
Constructive Data
- Net weight (kg) 71
- Net volume (m3) 0,147
- Gross weight (kg) 84
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/SL/A
FUN 700
Gas griddle, smooth satin chrome plate, on open cabinet
Fry top gas FUN 70/70 piastra cromo satinato liscia 11.4 kW vano aperto
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
- Plate finish Smooth
Constructive Data
- Net weight (kg) 83
- Net volume (m3) 0,417
- Gross weight (kg) 96
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/SL/P
FUN 700
Gas griddle, smooth satin chrome plate, on cabinet with doors
Fry top gas FUN 70/70 piastra cromo satinato liscia 11.4 kW vano con porte
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
- Plate finish Smooth
Constructive Data
- Net weight (kg) 89
- Net volume (m3) 0,417
- Gross weight (kg) 102
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/SLR/T
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed satin chrome plate, top
Fry top gas FUN 70/70 piastra cromo satinato 2/3 liscia 1/3 rigata 11,4 kW top
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
Constructive Data
- Net weight (kg) 68
- Net volume (m3) 0,147
- Gross weight (kg) 81
- Gross volume (m3) 0,383
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x300
- Packing dimensions (mm) 776x776x636
FUN 700
F70/70FTG/SLR/A
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed satin chrome plate, on open cabinet
Fry top gas FUN 70/70 piastra cromo satinato 2/3 liscia 1/3 rigata 11,4 kW vano aperto
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
Constructive Data
- Net weight (kg) 80
- Net volume (m3) 0,417
- Gross weight (kg) 93
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
FUN 700
F70/70FTG/SLR/P
FUN 700
Gas griddle, 2/3 smooth 1/3 ribbed satin chrome plate, on cabinet with doors
Fry top gas FUN 70/70 piastra cromo satinato 2/3 liscia 1/3 rigata 11,4 kW vano con porte
Features
- Plate Satin chrome plate
- Knobs Knobs are made from a sturdy heat-resistant polymer blend and are equipped with liquid anti-leakage washer
- Handles Brushed aluminum finish
- Working top Made of AISI 304 stainless steel with a thickness of 10/10 mm
- Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
- Material of plate Satin chrome
Constructive Data
- Net weight (kg) 86
- Net volume (m3) 0,417
- Gross weight (kg) 99
- Gross volume (m3) 0,711
- Total gas power (kW) 11,4
- Total gas power (Kcal/h) 9803
- Gas connection 1/2"
- Cooking zone dimensions 1 (LxD mm) 696x520
- Dimension (mm) 700x700x850
- Packing dimensions (mm) 776x776x1180
